Observing Capabilities¶
This section summarizes the projected observing capabilities of the global gravitationalwave detector network as of March 2023, superseding the Living Review [1] on prospects for observing and localizing gravitationalwave transients with Advanced LIGO, Advanced Virgo, and KAGRA.
Timeline¶
Note
Check the LIGO, Virgo, and KAGRA Observing Run Plans for the latest details on scheduling of the next observing run, which are summarized here.

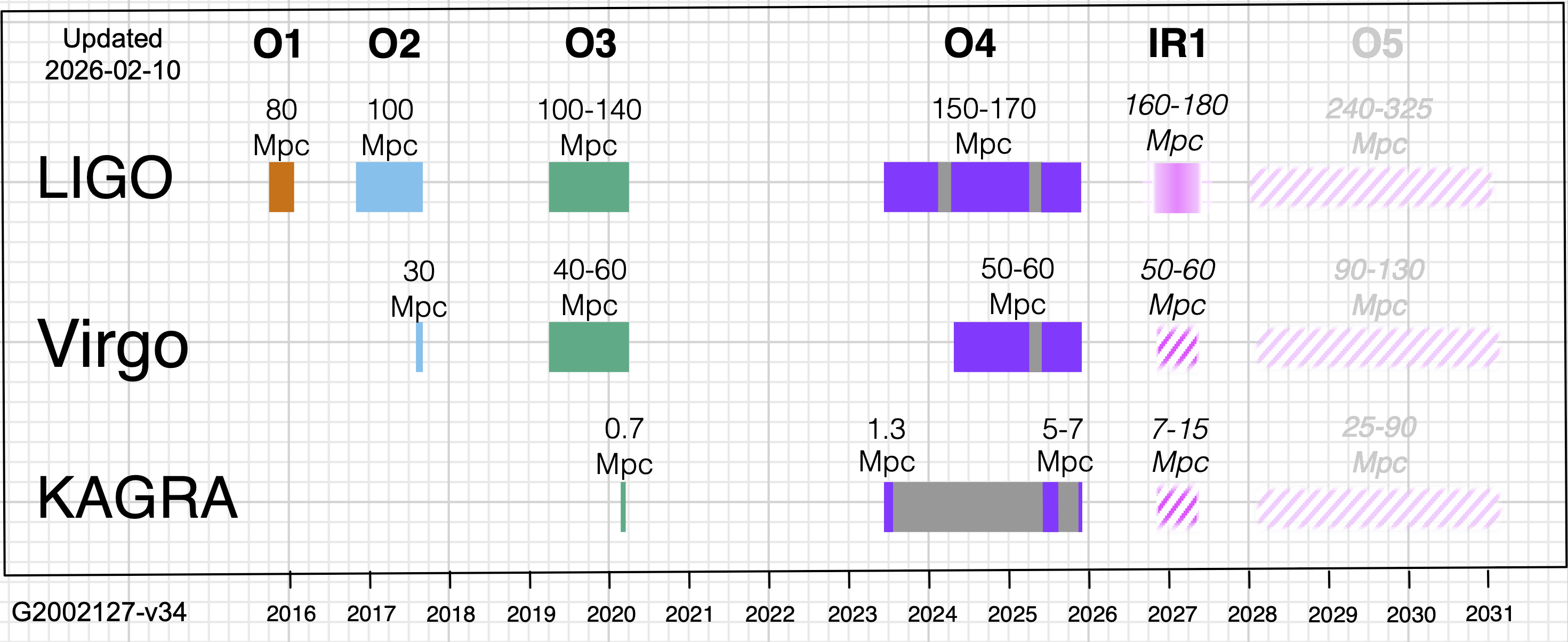

The gravitationalwave observing schedule is divided into Observing Runs or epochs of months to years of operation at fixed sensitivity, down time for construction and commissioning, and transitional Engineering Runs between commissioning and observing runs. The longterm observing schedule is shown below. Since BNS mergers are a wellstudied class of gravitationalwave signals, this figure gives the BNS range for highly confident detections in each observing run.
During O4, we expect that four facilities (LHO, LLO, Virgo, and KAGRA) will observe for one year. LHO, LLO, and Virgo will have a onemonth commissioning break in the middle of the run. KAGRA will begin the run with LIGO and Virgo and then return to extended commissioning to rejoin with greater sensitivity toward the end of O4.
Live Status¶
There are a handful of public web pages that report live status of the LIGO/Virgo/KAGRA detectors and alert infrastructure.
 Detector Status Portal: Daily summary of detector performance.
 GWIStat: Realtime detector up/down status.
 LIGO Data Grid Status: Live dashboard showing up/down status of the detectors and online analyses. Status of the LIGO/Virgo/KAGRA alert pipeline is indicated by the “EMFollow” box.
Public Alert Rate and Localization Accuracy¶
Here we provide predicted public alert rates, distances, and localization uncertainties for BNS, NSBH, and BBH mergers in O4 and O5, based on a Monte Carlo simulation of detection and localization of events.
The methodology of the simulation is the same as described in [1] and [2], although the GW detector network configurations, sensitivity curves, astrophysical rates, and mass and spin distributions have been updated.
Source code to reproduce these simulations is available at https://github.com/lpsinger/observingscenariossimulations/tree/v2 or https://doi.org/10.5281/zenodo.5206852.
Sky localization FITS files from these simulations are provided at doi:10.5281/zenodo.7026209.
Detection Threshold¶
The network SNR threshold for detection was set to 8 in order to approximately reproduce the rate of public alerts that were sent in O3 (see [2]).
Important
This section predicts the rate of public alerts, not the rate of highly confident detections. Most public alerts do not survive as confident detections in the authoritative endofrun LIGO/Virgo/KAGRA compact binary catalogs.
Previous versions of this User Guide used a network SNR threshold of 12, which roughly corresponds to the singledetector SNR threshold that is assumed for the canonical BNS range shown in the timeline figure above.
The change in the detection threshold from 12 to 8 accounts for an increase in the predicted number of events by a factor of \(\sim (12/8)^3 = 3.375\) over previous versions of this User Guide.
Detector Network¶
The detector sensitivity curves used for the simulation are available in LIGOT2200043v3. The filenames for each detector and observing run are given in the table below.
Detector
Observing run


O4
O5









These noise curves correspond to the high ends of the BNS ranges shown in the timeline figure above, with the exception of Virgo in O5, for which it represents the low end.
We assume that each detector has an independent observing duty cycle of 70%.
Source Distribution¶
We draw masses and spins of compact objects from a global maximum a posteriori fit of all O3 compact binary observations [3]. The distribution and its parameters are described below.
Masses
The 1D sourceframe component mass distribution is the “Power Law + Dip + Break” model based on [4], and is given by:
defined for \(1 \leq m / M_\odot \leq 100\). It consists of four terms:
a highmass tapering function \(l(mM_\mathrm{max},\eta_\mathrm{max}) = \left(1 + \left(m / M_\mathrm{max}\right)^{\eta_\mathrm{max}}\right)^{1}\),
a lowmass tapering function \(h(mM_\mathrm{min},\eta_\mathrm{min}) = 1  l(mM_\mathrm{min},\eta_\mathrm{min})\),
a function \(n(m M^\mathrm{gap}_\mathrm{low}, M^\mathrm{gap}_\mathrm{high}, \eta_\mathrm{low}, \eta_\mathrm{high}, A) = 1  A \, l(mM^\mathrm{gap}_\mathrm{high}, \eta_\mathrm{high}) \, h(mM^\mathrm{gap}_\mathrm{low}, \eta_\mathrm{low})\) that suppresses masses in the hypothetical “mass gap” between NSs and BHs, and
a piecewise power law.
The joint 2D distribution of the primary mass \(m_1\) and the secondary mass \(m_2\) builds on the 1D component mass distribution and adds a pairing function that weights binaries by mass ratio:
defined for \((m_1 \geq m_2) \cap ((m_1 \leq 60 M_\odot) \cup (m_2 \geq 2.5 M_\odot))\). The two figures below show the 1D and joint 2D component mass distributions.
Spins
The spins of the binary component objects are isotropically oriented. Component objects with masses less than 2.5 \(M_\odot\) have spin magnitudes that are uniformly distributed from 0 to 0.4, and components with greater masses have spin magnitudes that are uniformly distributed from 0 to 1.
Sky Location, orientation
Sources are isotropically distributed on the sky and have isotropically oriented orbital planes.
Redshift
Sources are uniformly distributed in differential comoving volume per unit proper time.
Rate
The total rate density of mergers, integrated across all masses and spins, is set to \(240_{140}^{+270}\,\mathrm{Gpc}^{3}\mathrm{yr}^{1}\) ([3], Table II, first row, last column).
Parameters
The parameters of the mass and spin distribution are given below.
Parameter
Description
Value

\(\alpha_1\)
Spectral index for the power law of the mass distribution at low mass
2.16
\(\alpha_2\)
Spectral index for the power law of the mass distribution at high mass
1.46
\(\mathrm{A}\)
Lower mass gap depth
0.97
\(M^\mathrm{gap}_\mathrm{low}\)
Location of lower end of the mass gap
2.72 \(M_\odot\)
\(M^\mathrm{gap}_\mathrm{high}\)
Location of upper end of the mass gap
6.13 \(M_\odot\)
\(\eta_\mathrm{low}\)
Parameter controlling how the rate tapers at the low end of the mass gap
50
\(\eta_\mathrm{high}\)
Parameter controlling how the rate tapers at the low end of the mass gap
50
\(\eta_\mathrm{min}\)
Parameter controlling tapering the power law at low mass
50
\(\eta_\mathrm{max}\)
Parameter controlling tapering the power law at high mass
4.91
\(\beta\)
Spectral index for the power lawinmassratio pairing function
1.89
\(M_{\rm min}\)
Onset location of lowmass tapering
1.16 \(M_\odot\)
\(M_{\rm max}\)
Onset location of highmass tapering
54.38 \(M_\odot\)
\(a_{\mathrm{max, NS}}\)
Maximum allowed component spin for objects with mass \(< 2.5\, M_\odot\)
0.4
\(a_{\mathrm{max, BH}}\)
Maximum allowed component spin for objects with mass \(\geq 2.5\, M_\odot\)
1
Summary Statistics¶
The table below summarizes the estimated public alert rate and sky localization accuracy in O4 and O5. All values are given as a 5% to 95% confidence intervals.
Observing run
Network
Source class


Merger rate per unit comoving volume per unit proper time
(Gpc^{3} year^{1},
lognormal uncertainty)


\(210 ^{+240} _{120}\)
\(8.6 ^{+9.7} _{5.0}\)
\(17.1 ^{+19.2} _{10.0}\)

Sensitive volume: detection rate / merger rate
(Gpc^{3}, Monte Carlo uncertainty)


O4
HKLV
\(0.172 ^{+0.013} _{0.012}\)
\(0.78 ^{+0.14} _{0.13}\)
\(15.15 ^{+0.42} _{0.41}\)
O5
HKLV
\(0.827 ^{+0.044} _{0.042}\)
\(3.65 ^{+0.47} _{0.43}\)
\(50.7 ^{+1.2} _{1.2}\)
Annual number of public alerts
(lognormal merger rate uncertainty \(\times\) Poisson
counting uncertainty)


O4
HKLV
\(36 ^{+49} _{22}\)
\(6 ^{+11} _{5}\)
\(260 ^{+330} _{150}\)
O5
HKLV
\(180 ^{+220} _{100}\)
\(31 ^{+42} _{20}\)
\(870 ^{+1100} _{480}\)
Median luminosity distance
(Mpc, Monte Carlo uncertainty)


O4
HKLV
\(398 ^{+15} _{14}\)
\(770 ^{+67} _{70}\)
\(2685 ^{+53} _{40}\)
O5
HKLV
\(738 ^{+30} _{25}\)
\(1318 ^{+71} _{100}\)
\(4607 ^{+77} _{82}\)
Median 90% credible area
(deg^{2}, Monte Carlo uncertainty)


O4
HKLV
\(1860 ^{+250} _{170}\)
\(2140 ^{+480} _{530}\)
\(1428 ^{+60} _{55}\)
O5
HKLV
\(2050 ^{+120} _{120}\)
\(2000 ^{+350} _{220}\)
\(1256 ^{+48} _{53}\)
Median 90% credible comoving volume
(10^{3} Mpc^{3},
Monte Carlo uncertainty)


O4
HKLV
\(67.9 ^{+11.3} _{9.9}\)
\(232 ^{+101} _{50}\)
\(3400 ^{+310} _{240}\)
O5
HKLV
\(376 ^{+36} _{40}\)
\(1350 ^{+290} _{300}\)
\(8580 ^{+600} _{550}\)
Merger rate per unit comoving volume per unit proper time is the astrophysical rate of mergers in the reference frame that is comoving with the Hubble flow. It is averaged over a distribution of masses and spins that is assumed to be nonevolving.
Caution
The merger rate per comoving volume should not be confused with the binary formation rate, due to the time delay between formation and merger.
It should also not be confused with the merger rate per unit comoving volume per unit observer time. If the number density per unit comoving volume is \(n = dN / dV_C\), and the merger rate per unit proper time \(\tau\) is \(R = dn/d\tau\), then the merger rate per unit observer time is \(R / (1 + z)\), with the factor of \(1 + z\) accounting for time dilation.
See [5] for further discussion of cosmological distance measures as they relate to sensitivity figures of merit for gravitationalwave detectors.
Sensitive volume is the quotient of the rate of detected events per unit observer time and the merger rate per unit comoving volume per unit proper time. The definition is given in the glossary entry for sensitive volume. To calculate the detection rate, multiply the merger rate by the sensitive volume.
The quoted confidence interval represents the uncertainty from the Monte Carlo simulation.
Annual number of public alerts is the number of alerts in one calendar year of observation. The quoted confidence interval incorporates both the lognormal distribution of the merger rate and Poisson counting statistics, but does not include the Monte Carlo error (which is negligible compared to the first two sources of uncertainty).
The remaining sections all give median values over the population of detectable events.
Median luminosity distance is the median luminosity distance in Mpc of detectable events. The quoted confidence interval represents the uncertainty from the Monte Carlo simulation.
Note
Although the luminosity distances for BNSs in the table above are about twice as large as the BNS ranges in the figure in the Timeline section, the median luminosity distances should be better predictors of the typical distances of events that will be detectable during the corresponding observing runs.
The reason is that the BNS range is a characteristic distance for a single GW detector, not a network of detectors. LIGO, Virgo, and KAGRA as a network are sensitive to a greater fraction of the sky and a greater fraction of binary orientations than any single detector alone.
Median 90% credible area is the area in deg\(^2\) of the smallest (not necessarily simply connected) region on the sky that has a 90% chance of containing the true location of the source.
Median 90% credible volume is the median comoving volume enclosed in the smallest region of space that has a 90% chance of containing the true location of the source.
Cumulative Histograms¶
Below are cumulative histograms of the 90% credible area, 90% credible comoving volume, and luminosity distance of detectable events in O3, O4, and O5.
